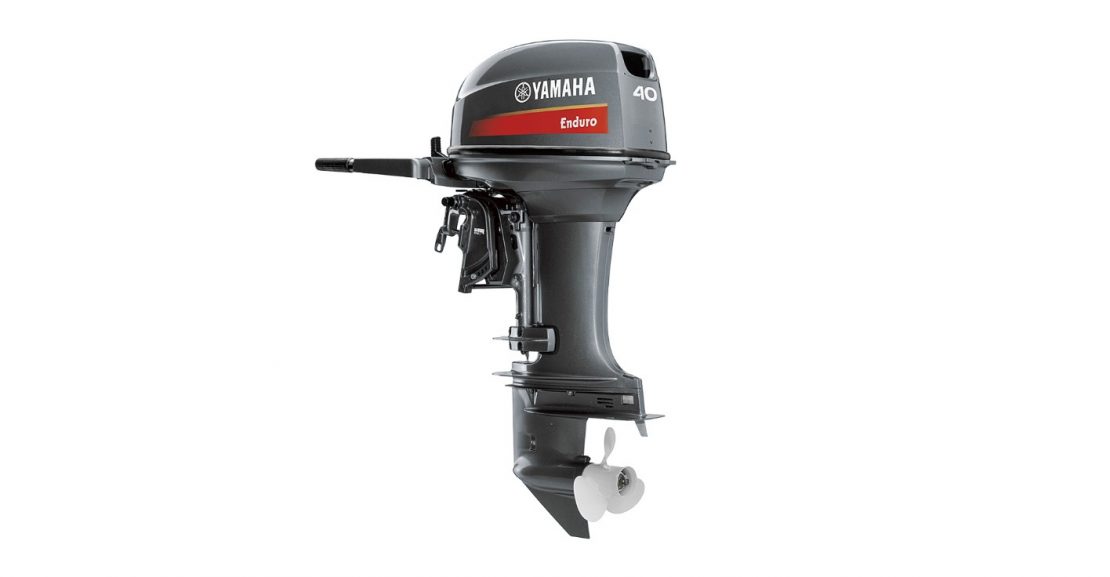

Yamaha E40XMH Two Stroke Enduro Outboard Boat Engine

Boat Engines SKU: N/A

PERFORMANCE

Max. prop shaft output (kW/HP)	29.4 / 40
Full throttle operating range (r/min)	4500-5500
Dry weight (kg)	S: 72, L: 74

ENGINE

Engine Type	2 stroke, In-line 2
Displacement (CM3)	703
Bore x Stroke (MM)	80.0 x 70.0
Compression Ratio	6.0 : 1
Fuel induction system	1 Carburetor
Gasoline	Regular
Lubrication system / Mixing ratio	Pre-mixed fuel and oil / 50 : 1
Ignition system	CDI
Alternator	80W (optional)
Cooling system	Raw-water, Thermostatically controlled
Exhaust system	Through propeller boss

BRACKET / DRIVE

Starter system	Manual starter
Trim system	Manual Trim 7 positions
Controls	Tiller handle
Steering angle	45 deg. each direction
Gear shift	F-N-R
Gear ratio	2.0 (26/13)
Propeller rotation	Clockwise
Engine transom height (MM/INCH)	S: 424 / 16.7, L: 550 / 21.7
